Rugged and simple to operate, the Gvision Camera System is an affordable camera solution with user-friendly functionality. Easily record inspections with One Touch® technology onto a USB flash drive or Apple® device. A built-in microphone allows you to record your voice to videos and playback on a mobile device. Capture every detail with the 1.3” color, self-leveling camera head and clearly view your inspections on the 10.4” anti-glare LCD screen.
- Bright self-leveling color camera head
- "Always-on" built-in transmitter for up to 15 feet deep
- Stiff and flexible for ultimate navigation through 3" up to 12" pipes
- Large anti-glare LCD with wide viewing angles
- One-Touch record onto USB, USB to Android® and Apple® devices
- Built-in microphone
- Ruggedized design
- Power with AC, DC or Battery (optional)
- Made in U.S.A.
Gvision V3 X
Gvision V3 X w/ Battery
Gvision Camera Reel 200 Ft
Gvision Camera Reel 300 Ft
Gvision Camera Reel 400 Ft

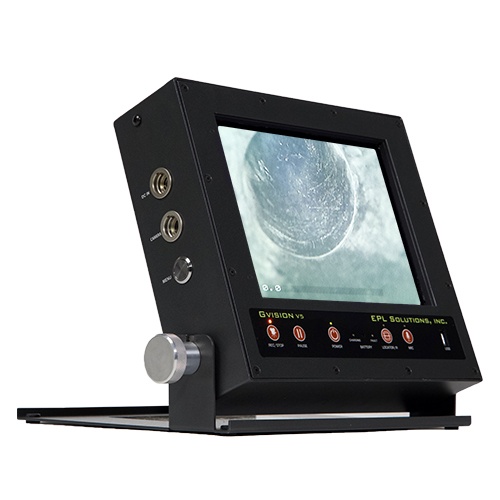

The Gvision V3 monitor's outer shell is fabricated with heavy-duty aluminum. This ensures the monitor is both lightweight and durable. Throughout its years in service across the USA, the ruggedized Gvision monitor has proven itself in the field time and again as a long-lasting tool.
Protective Aluminum Case
Gvision tossed several times across a parking lot to display its durability. Do not show this to your techs.
Amazing picture quality.
View a vibrant picture in direct sunlight with the anti-glare LCD and the 1.3" color camera head. Clearly watch the screen across a parking lot, from the rooftop or on the other side of the street. The Gvision provides a bright picture in any setting.
10.4" Color Display
1.3" Color Self-Leveling Camera Head

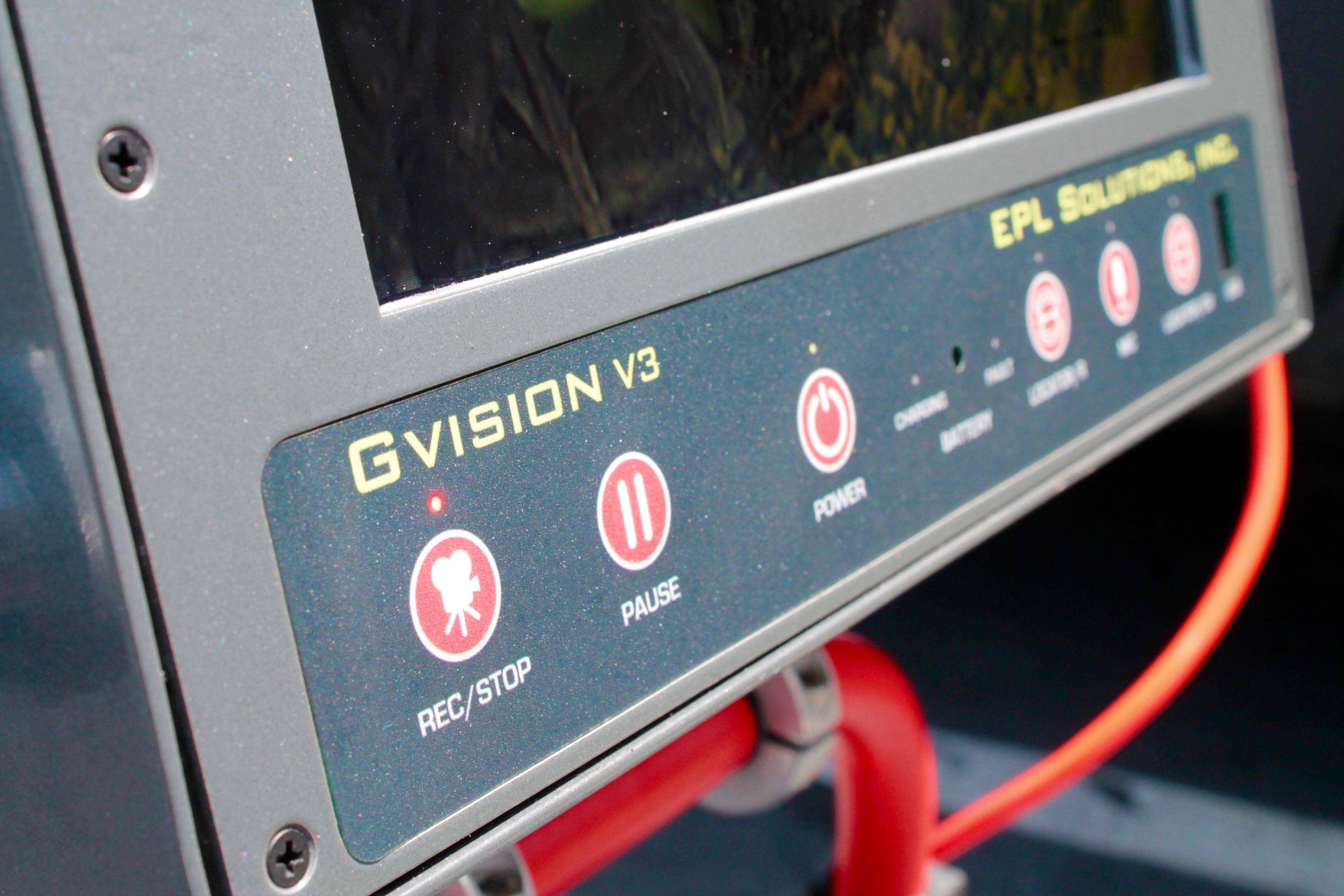

Record. Save. Send.
With One-Touch Record technology, save high quality videos onto an Apple® Device, flash drive and hard drive. Add narrative with the built-in microphone and share your videos with YouTube, Dropbox, Email and more.
Broadcast Quality Video
Videos save as MP4 and MOV files
See Monitor Specifications
Audio via built-in microphone [mic sensitivity - 46 ± 2.0, ( 0 dB = 1V / Pa ) at 1K Hz.]
Flash drive, Hard drive, USB/SD: 720 x 480 resolution .mp4
Apple® device (direct-connect): 320 x 240 resolution .mov
- 12 volt power
- Camera connection
- Audio/Video input and output connection
3-pin receptacle push-pull locking for 12 volts power
8-pin receptacle push-pull locking for camera interconnect cord
4-pin receptacle M9 locking for Audio/Video input and output connection
USB port for external media connection
Size and Weight
Height: 11.25 inches (28.6 cm)
Width: 9.75 inches (24.7 cm)
Depth: 4 inches (10 cm)
Weight: 10 lb. (4.5 kg) 10.5 lb. with battery (5 kg)
10.4" Color LCD
170º degree view
800 x 3(RGB) x 600
0.09" heavy-duty aluminum
Solid locking aluminum knobs
Electrical and Operating Requirements
Power voltage: 90v-264v AC switching power supply for 12v DC In
Internal battery voltage: 12 volts 9000mAh (4 Hours charging time)
Operating temperature: -40ºC - 125ºC
In the Box
Water-proof accessory case
12 Volt switching power supply
Camera interconnect cord
Automobile aux. cord for charging optional battery (for model V3.03 only)
4GB Type-A flash drive for recording video
Monitor mount kit for camera reel (optional)
Shoulder strap (optional)
Recording Firmware Specifications
Gvision records onto flash drive, hard drive and USB/SD adapter devices.
Firmware is required for a direct-connect recording onto an Apple® device. Contact EPL Solutions, Inc. for current firmware update and visit Product Support.

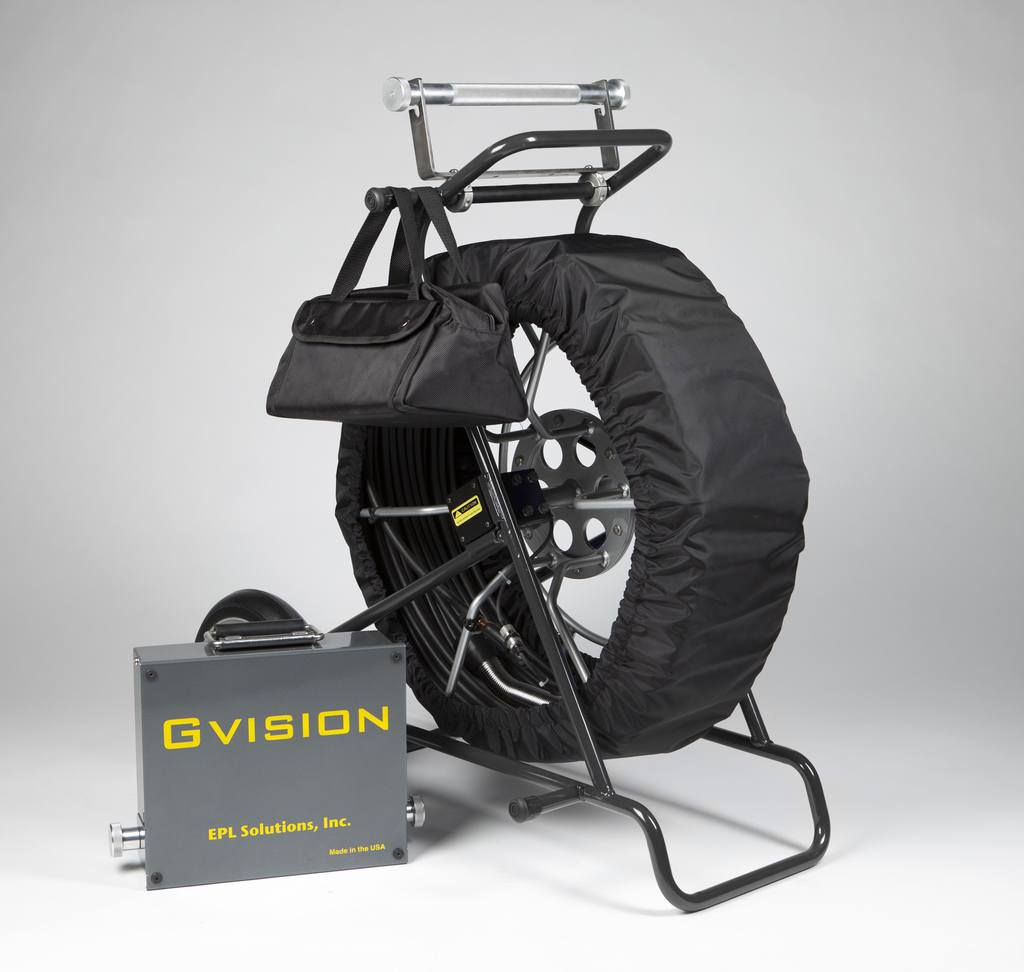

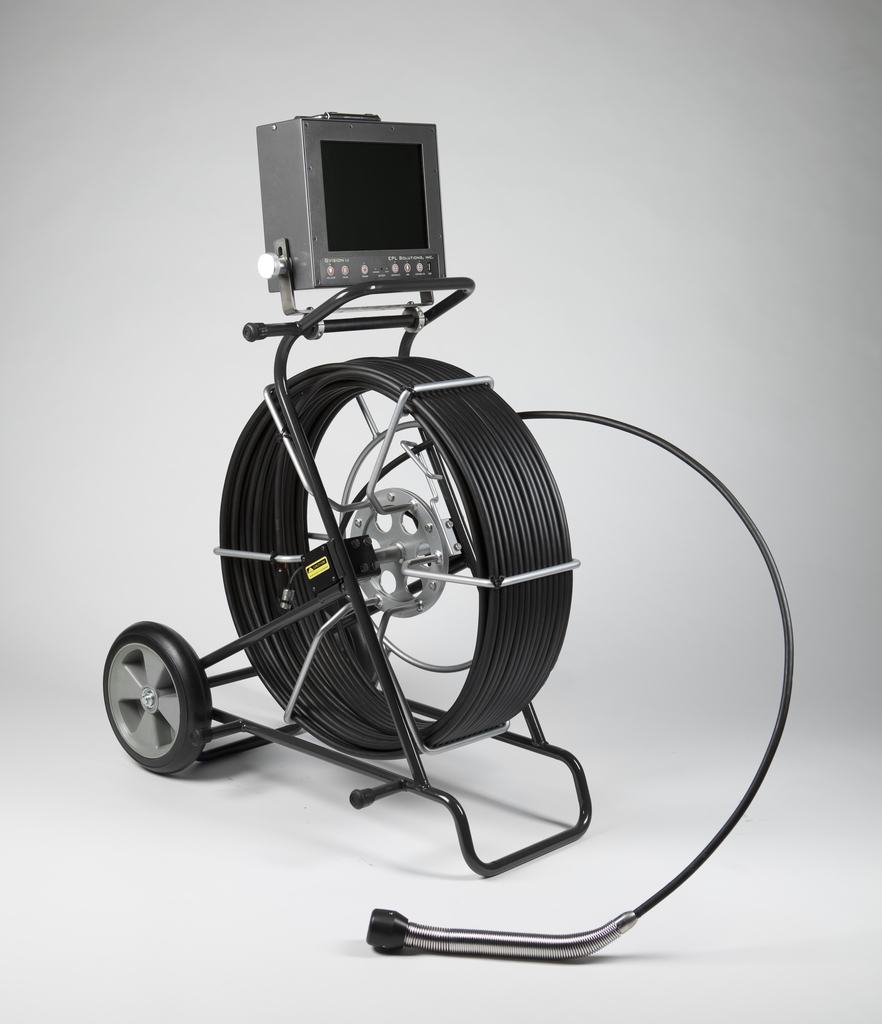

See Camera Reel Specifications
Fiber Glass, optimized for further pushes with turns and bends
1.3” Self-leveling Color Camera Head
Vertical ; versatile and expandable design
3” to 12”, inspects most residential and commercial pipes
512 Hz, “Always on” for precise area determination
Portable for ideal viewing position and easy handling
Frequently asked questions
Gvision includes a lifetime manufacturer's defect warranty, and a one-year warranty from date of purchase.
Does it have a transmitter?
The camera has a built in 512 Hz transmitter, which is always-on for precise area determination.
Does it have a counter?
The counter will be available in the next model. All previous models have the option of upgrading when the feature is available.
How long does the V3 battery last?
The battery will last up to 4 hours, with an average of 3-1/2 hours.
Does it record onto Android?
Videos recorded onto a USB-to-microUSB flash drive can be downloaded onto Android and Samsung mobile phones. The direct connect method is only available for iOS devices.
What is the weight and dimension?
The V3 is about 11"L x 4"W x 9"H and can weigh up to 10.5 pounds.
The camera reel is 30”L x 16-1/2”W x 32-1/2”H and weighs 62 lbs. (200 ft. of cable)
