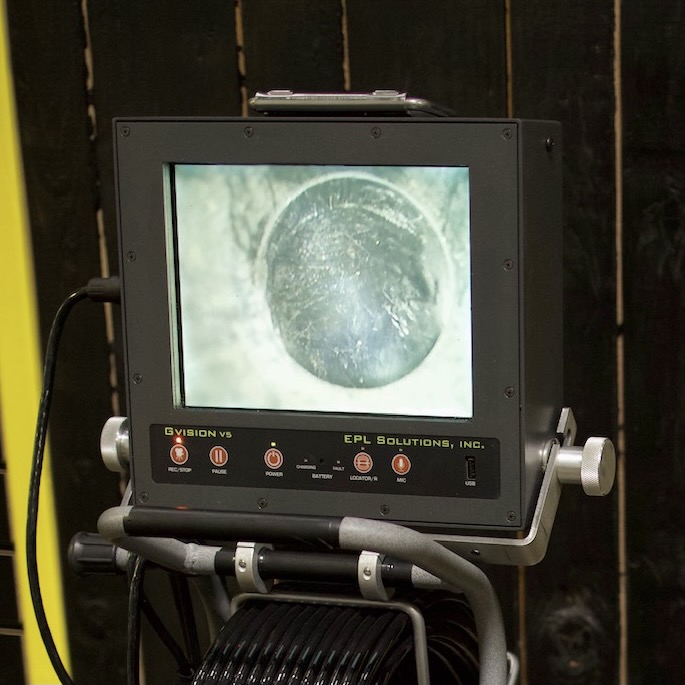

The Gvision® V5 delivers a clear picture, One-Touch® USB recorder and rugged design. It features a built-in footage counter and date stamp which combined with the Gvision® camera reel provides a powerful tool for video inspecting sewer lines. The Gvision® One-Touch recorder makes it simple to create and share recordings from Apple® and Android® devices with the included USB adapter kit. A large 10.4 inch TruView LCD displays a clear, vibrant picture in direct sunlight for optimal viewing. The sleek, lightweight design makes the Gvision® V5 easy to handle and transport. Available with a shoulder strap to free your hands.
- 10.4” TruView LCD
- Date and Footage Counter
- Lightweight and compact
- Heavy-duty aluminum case
- Innovative front cover/stand
- Record HQ video onto a USB hard drive, flash drive and Apple® and Android® devices
- Lifetime Manufacturer’s Defect Warranty
- Made in U.S.A.
- Optional built-in battery with an average of 3 hours recording time
- Optional shoulder strap for easy portability
Gvision V5 no battery
Gvision V5 with Battery
Ruggedized construction for years of service.
We wanted the monitor to handle the toughest workspaces. Constructed using heavy-duty, lightweight materials, the monitor passed a series of severe environmental conditions, from hard impact survival to extreme heat. We added a cover/stand for secure transportation and for angling the monitor on the ground and rooftop.
Protective Aluminum Case
The Gvision's outer shell is fabricated with a durable aluminum commonly used in construction.
Gvision tossed several times across a parking lot to display its durability.
This test was for demonstration purposes only. We do not recommend throwing the Gvision.
Amazing picture quality.
See what you're doing in the bright sun with this vibrant LCD. Watch it from across the parking lot, from the rooftop or on the other side of the street. The anti-glare screen has a bright picture in any setting.
10.4" TruView Display
Audio via built-in microphone [mic sensitivity - 46 ± 2.0, ( 0 dB = 1V / Pa ) at 1K Hz.]
Flash drive, Hard drive, USB/SD: 720 x 480 resolution .mp4
Apple® device (direct-connect): 320 x 240 resolution .mov

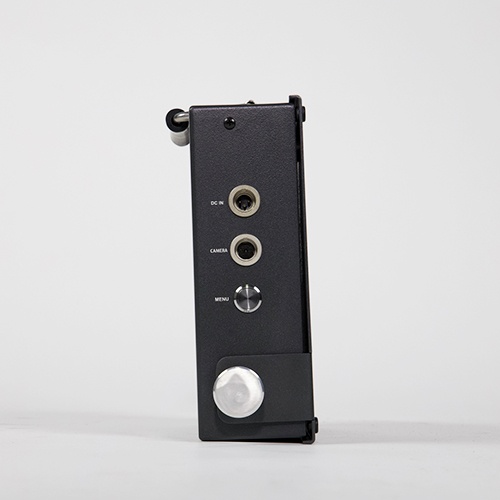

- 12 volt power
- Camera connection
- Menu button
3-pin receptacle push-pull locking for 12 volts power
12-pin receptacle push-pull locking for camera interconnect cord
Menu button is to toggle the date stamp and footage counter, zero out footage counter and set date and time.
USB port for external media connection
Size and Weight
Height: 10 inches (28.6 cm)
Width: 11 inches (24.7 cm)
Depth: 3 inches (10 cm)
Weight: 10 lb. (4.5 kg) 10.5 lb. with battery (5 kg)
10.4" Color LCD
170º degree view from all angles
1024 x RGB x 768
0.09" heavy-duty aluminum
Solid locking aluminum knobs
Electrical and Operating Requirements
Power voltage: 90v-264v AC switching power supply for 12v DC In
Internal battery voltage: 12 volts 9000mAh
In the Box
Water-proof accessory case
12 Volt switching power supply
Camera interconnect cord
4GB Type-A flash drive for recording video
Monitor mount kit for camera reel (optional)
Shoulder strap (optional)
Recording Firmware Specifications
Gvision® records onto flash drive, hard drive and USB/SD adapter devices.
Firmware is required for a direct-connect recording onto an Apple® device. Contact EPL Solutions, Inc. for current firmware update and visit Product Support.
Frequently asked questions
Does it come with a warranty?
The Gvision® V5 includes a lifetime manufacturer's defect warranty, and a one-year warranty from date of purchase.
Will it connect to my camera?
The Gvision® V5 is designed to connect to the Gvision® Camera Reel. An additional camera cord can be included for RIDGID® camera reels.
How long does the battery last?
The Gvision® battery will last up to 4 hours, and holds an average of 3 - 3-1/2 hours when recording.
Does it record onto Apple® or Android®?
Videos recorded from Gvision® onto a USB-to-microUSB flash drive can be downloaded onto an Apple® or Android® mobile device with the adapter kit.
What is the weight and dimension?
The Gvision® V5 is about 11"L x 3"W x 10"H and can weigh up to 10.5 pounds.
